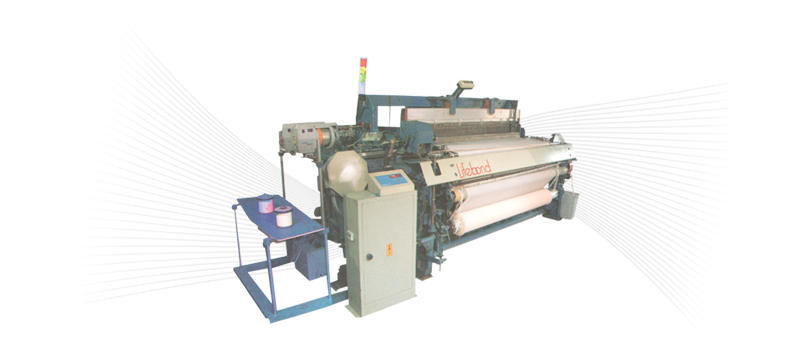

The LIFEBOND Rapier loom has been designed with a very solid structure which permits to weave without vibration at high speeds. The machine has a capacity to weave light as well as medium to heavy to fabrics. The machine is Powered by a 2 H.P. 3-phase electric motor combined with Electro Magnetic Brake.
| Techical Specification | |
|---|---|
| Reed Width (cms) | 160, 168, 178, 183, 305 |
| Speed RPM | 180 - 240 (speed as per width) |
| Cloth | Suitable for,for Fine, Medium & Heavy Fabrics From cotton,Polyester, Silk, Wool. Acrylic, Rayons, Nylon and Fancy Yarns. |
| Weft Speed | Above 380 mpm. ATUFS APPROVED |
| Weft Selection | 8 Colour Pick and Pick with Programmable Microprocessor Based weft Presenter/ Mechanically Possible by Dobby and Jacquard. |
| Shed Formation | Tappet Shedding |
| Beam | Flanged Beam Upto 17" Diameter. |
| Fabric Storage | 400mm Dia. |
| Weft Stop Motion | piezo electric |
| Warp Detection | Dropper Type 6 rows |
| Selvage | Magnetic Leno With Bobbin Stand. |
| Selvage Cutter | Thermal (mechanical Optional). |
| Temple | Ring Type Cylinder with Pin. |
| Take up | Adjusted According to weft Density of the Cloth by Pick Wheels / servo drive |
| Let Off | Semi positive controlled by feeder roller / servo drive |
| Driving | Electric Motor with electromagnetic brake |
| Weft Feeder | Bobbin Stand Through Weft Accumulators. |
| Lubrication | Grease Pump. |
| Power | 1.5kw to 3.7 kw as per width of machine. |
