| Techical Specification | |
|---|---|

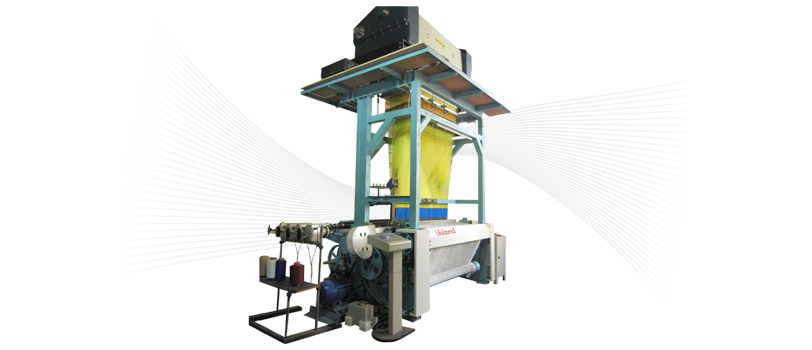

| Machine Type | Cam Type flexible Tape Rapier Weaving Machine |
| Nominal Width | 1500-1600-1900-2300. |
| Performance | Up to 325 Picks Per Minute. Up to 520 m/min/ of Weft Inserted |
| Weft Insertion Speed (mpm) | Above 380 mpm. ATUFS APPROVED |
| Fabrics Produced | Fabrics with Natural, Artificial, Synthetic & Blended Yarns. |
| Weft Color Selector | 6 or 8color Jacquard Lift Selector, Electronic. |
| Weft Feeder | Electronic Weft Feeder. |
| Weft Insertion | Rapier Mounted on Flexible Tapes, Guided by Hooks. |
| Tape Drive | Via Positive Device Wheels Driven by a Coupled cam unit Mechanism. |
| Sley | Driven by Positive Coupled Cam Units. |
| Picks Per cm | Standard Setting from 4 to 84 Picks/cm. |
| Weft Density | From 5to 150 Picks /cm. |
| Warp Let-off | Motorised Positive Let-off with Electronic Control, with Fabric Regulator. |
| Shed Mechnism | With Cam (Max. 12 Frames). |
| With Electronic Rotary Dobby 20 Shaft. | |
| Electronic Jacquard with Universal joint Device. | |
| Selvedges | Leno with 2or 4 Binding Threads. |
| Heat-Sealed for Synthetic Yarns. | |
| Lateral and Central Tuck-In Devices. | |
| Weft Control | High Sensitivity Piezo-Electric Detector with Double weft Control. |
| Warp Control | Electric Warp Stop Motions with 6 to 8 Rows |
| Cloth Roll | Quick Release Take up Roller up to 550mm in Diameter. |
| Lubrication | Central Lubrication, Let-off Device and Fabric Regulator in Oil Bath. |
| Waste Device | Mechanical Waste Selvedge drawing Device with Waste Disposal. |
| Main Drive | Rated 3.5kw Three-Phase Motor. |
| Machine Control | By means of the Microprocessor- Control, Which device and controls all Mechanical Functions. |
