| Item | Technical Speciification | |
|---|---|---|
| Reed Space | Nominal: 190, 210, 230, 250, 280, 340, 360cm | - |
| Useful Range: Reduction from nominal 0~60cm (190-250cm): 0~80cm(280~360cm) | - | |
| Yarn Range | Spun Ne100 ~ Ne2.2 | - |
| Filament: 56 dtex ~ 1350 dtex | - | |
| Weft Selection | 2-color, 4-color, 6-color | 8-color |
| Drive | Direct drive main motor Magnetic brake control postion stop directly |
Programmable start, in-built inverter, can change speed during weaving. |
| 2.2KW (Crank shedding) 3.0KW (Cam Shedding), 3.7KW (Dobby Shedding), 5.5KW ~ 7.5KW(Jacquard Shedding) | ||
| Push button operated by both hands | ||
| Weft Accumulator | Electronic FDP weft accumulator | ABS control, air ballon breaker. |
| Weft Insertion | Main nozzle and sub nozzle combined system | Stretch nozzle. Independent timimg auxiliary nozzle. |
| Automatic insertion control, 1st pick control. | ||
| High frequency energy saving double nozzle valve | ||
| Auxiliary nozzle control colors separately | ||
| Shedding | Crank shedding: 4 shafts | Manual leveling (Positive cam) |
| Negative cam shedding: 8 shafts max | ||
| Positive cam shedding: 10 shafts max | ||
| Dobby shedding: 16 shafts max | ||

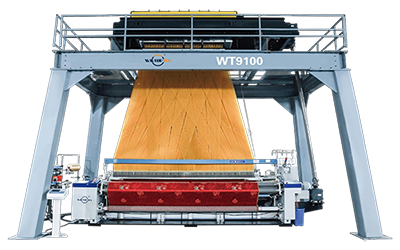

| Jacquard Shedding | ||
| Let Off | Electronic let-off by servo motor | Up & Down Beam. Twin Beam. Flange Φ914mm, Φ1000mm |
| Double roller electronic let-off with automaticreverse function | ||
| Flange diameter Φ800mm | ||
| Take-Up | Electronic take-up by servo motor | Batching motion 720mm |
| Pick Density: Standard 15 ~ 300 picks | ||
| Max take-up diameter: Φ600mm (cam, dobby Jacquard Shedding), Φ520mm (crank shedding ) | ||
| Weaving length counting display (m, yd, pick) | ||
| Beating | Crank type beating, multiple sley sword beating | - |
| 4 Link (narrow width) 6 Links(Wide Width) | - | |
| Bobbin Frame | Floor type 4 bobbins (For 2-color), Floor type: 8 Bobbins (For 4-color)m Floor type 10 bobbins (For 6-color) | - |
| Selvage | Planetary gear leno selvage | Electronic planetary gear leno. |
| 4 Link (narrow width) 6 Links(Wide Width) | Center leno device | |
| Waste Selvage | 2 rollers take-up; gear take up | - |
| Weft Cutter | Mechanical Weft cutter | Electronic Cutter |
| Lubrication | Oil bathsystem for main driving parts, centralize lubrication system (Manual grease) | Automatic centralize lubrication system. |
| Auto - Stop Motion | Weft: Photoelectric double weft sensor | Bobbin yarn break sensor |
| Warp: Electronic 6 row contact bar system | Warp Break indicate by row, by LH & RH side | |
| Others: Automatic stop for leno yarn and waste salvage yarn break. | Anti-Hand beating sensor | |
| Stop reason Indication: Indication on control panel and 4 color indication lamp. | ||
| Control & Automatic | Control: Multiple function computer control system with data setting / control / monitor / self-diagnose / artificial intelligence interface. | AFC, AJC. Centralized networked monitor system. |
| Pick finding: Automatic pick finding | ||
| Slom Motion (Forward and reverse) by inverter | ||
| Others: Monitor output terminal | ||
| Memory card system | ||
| Jet automatic control |
