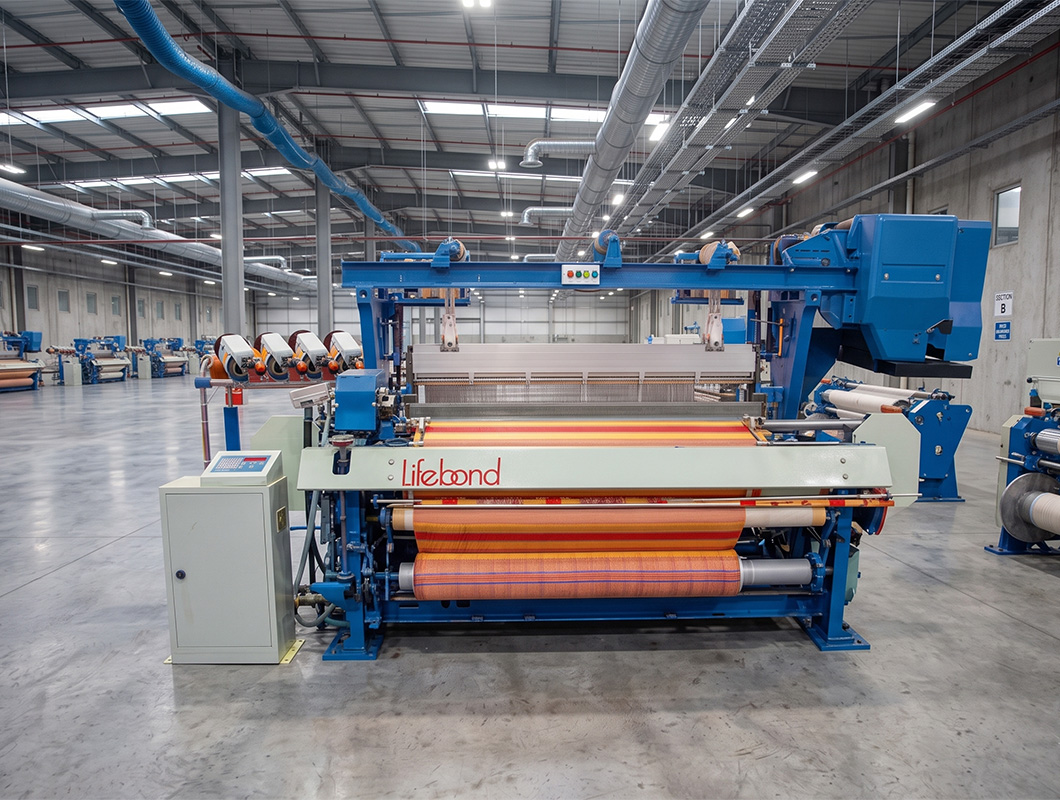

High-performance rapier weaving machine delivering precise weft insertion, consistent fabric quality, high-speed operation, and efficient textile production.
Rapier Weaving Machine suitable for fine, medium and heavy fabrics, with multiple reed-width options and above 380 mpm weft insertion speed.
| Reed Width | 160, 168, 178, 183, 305 |
|---|---|
| Cloth | Suitable for Fine, Medium & Heavy Fabrics from cotton, Polyester, Silk, Wool, Acrylic, Rayons, Nylon and Fancy Yarns. |
| Weft Insertion Speed | Above 380 mpm. ATUFS APPROVED |
| Weft Selection | 1x1, 2x2 (mechanical). |
| Shed Formation | Tappet Shedding |
| Beam | Flanged Beam Upto 17" Dia. |
| Fabric Storage | 400mm Diameter |
| Weft Stop Motion | Piezo electric |
| Warp Detection | Dropper Type 6 rows |
| Selvage | Magnetic Leno With Bobbin Stand. |
| Selvage Cutter | Thermal (mechanical Optional). |
| Temple | Ring Type Cylinder with Pin. |
| Let-off | Semi Positive Let-off System Controlled by Feeler Roller / Servo Drive |
| Take up | Adjusted According to weft Density of the Cloth by Pick Wheels / Servo Drive |
| Driving | Electric motor (changed According to Width of Machine - 1kw to 3.7kw) |
| Weft Feeder | Bobbin Stand Through Weft Accumulators. |
| Lubrication | Grease Pump |
