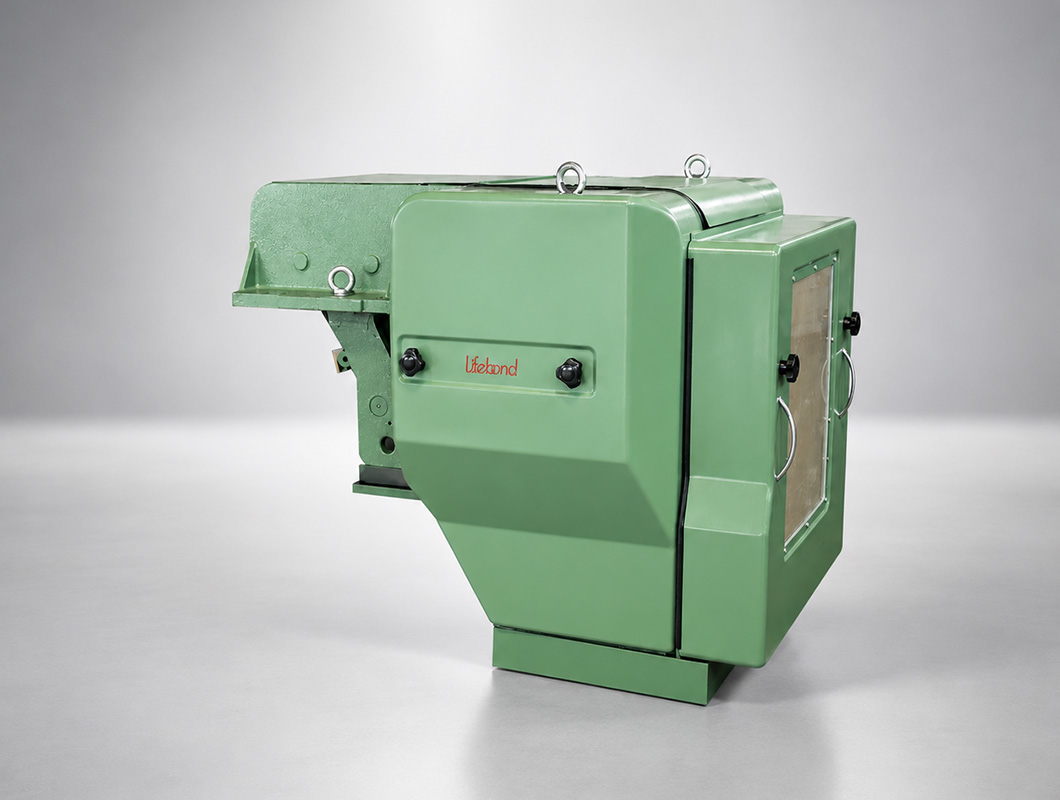

Cam Dobby loom combines cam shedding with dobby technology, enabling precise pattern control, versatile fabric designs, smooth operation, and efficient high-speed weaving.
Dobby is made from special graded steel casting and accurately machined. Its very rigid structure is suitable to weave heavy fabrics. Continuous oil lubrication while working helps ensure minimum wear and long life.
| Speed | 220 rpm |
|---|---|
| Peg Selection | Electronic by microprocessor / Mechanical by paper card |
| Drive | Timing belt through crank shaft |
| Shed Opening | 160 mm |
| No. of Shaft | 16, 20, 24 |
| Pitch | 12 mm |
| Heald Adjust | Adjustable wire rope |
| Mounting Method | Channel type |
| Shedding Method | Cam shed |
| Lubrication | Central lubrication by pump |
