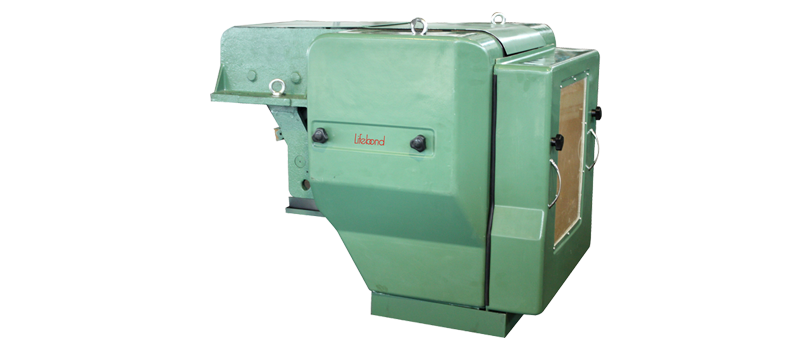

Cam Dobby

Dobby Features

Dobby is made from special graded steel casting & accurately machined. Dobby manufactured is of very rigid structure hence suitable to weave heavy fabrics. There is continues oil lubrication pump, when the dobby is working to ensure minimum wear ensuring long life.

CAM DOBBY
Speed 220 rpm

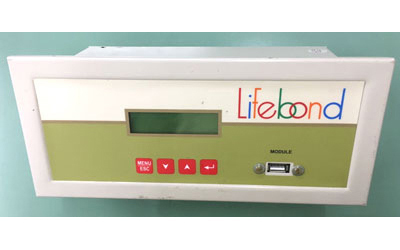

Peg Selection Electronic by microprocessor / Mechanical by paper card
Drive Timing belt through crank shaft
Shed Opening 160 mm
No. of Shaft 16, 20, 24
Pitch 12 mm
Heald Adjust Adjustable wire rope
Mounting Method Channel type
Shedding Method Cam shed
Lubrication Central lubrication by pump
